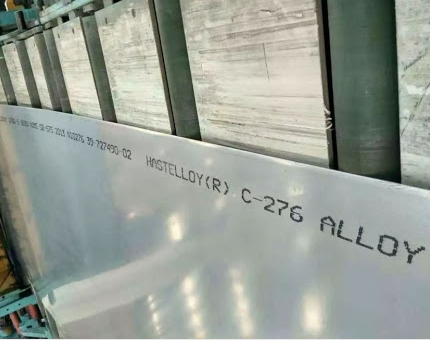

Hastelloy C-276 Plate

Hastelloy G-30 Plate
Material Grade:HASTELLOY B-2，HASTELLOY C-4，HASTELLOY C-22，HASTELLOY C- 276，HASTELLOY C-2000，HASTELLOY G-35 G-30
Width: 1000mm,1250mm,1219mm, 1500mm,1800mm,2000mm. Customized other width.
Thickness:0.1-300mm

Introduction
Parameters
Inquiry

Introduction

Parameters

UNS N10276
DIN W. Nr. 2.4819

Form	ASTM
Rod	B 574
Plate, sheet and strip	B 575
Seamless pipe and tube	B 622
Welded pipe	B 619, B 775
Welded tube	B 626, B 751
Welding fitting	B 366
Forged or rolled pipe flange and forged fitting	B 462
Billet and bar for reforging	B 472
Forging	B 564

Chemical composition

%	Ni	Cr	Mo	Fe	W	Co	C	Mn	Si	P	S	V
min	balance	20.0	12.5	2.0	2.5
max	balance	22.5	14.5	6.0	3.5	2.5	0.015	0.50	0.08	0.020	0.020	0.35

Physical properties

Density	8.69 g/cm3
Melting range	1325-1370℃

Melting range

1370-1400℃
